ESP32-S Series
ESP32-S31 | Dual-core 32-bit RISC-V® 320 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-S31NRV16 |
ESP32-S31NRV16 |
60 | 512 | N/A | 16 | QFN 8×8 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP32-S31NRV32 | 60 | 512 | N/A | 32 | QFN 8×8 |
Please open the DXF and ASC files by importing them. Download |
ESP32-S3 | Dual-core 32-bit Xtensa® LX7 240 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-S3 |
ESP32-S3
|
45 | 512 | N/A | N/A | QFN 7×7 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP32-S3R8 |
ESP32-S3R8
|
45 | 512 | N/A | 8 | QFN 7×7 |
Please open the DXF and ASC files by importing them. Download |
|||||||
| ESP32-S3FN8 |
ESP32-S3FN8
|
45 | 512 | 8 | N/A | QFN 7×7 |
Please open the DXF and ASC files by importing them. Download |
|||||||
| ESP32-S3FH4R2 |
ESP32-S3FH4R2
|
45 | 512 | 4 | 2 | QFN 7×7 |
Please open the DXF and ASC files by importing them. Download |
|||||||
| ESP32-S3R16V |
ESP32-S3R16V
|
45 | 512 | N/A | 16 | QFN 7×7 |
Please open the DXF and ASC files by importing them. Download |
|||||||
| ESP32-S3RH2 | 45 | 512 | N/A | 2 | QFN 7×7 |
Please open the DXF and ASC files by importing them. Download |
||||||||
|
ESP32-S3-PICO-1-N8R2 |
ESP32-S3-PICO-1-N8R2
|
39 | 512 | 8 | 2 | LGA 7×7 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP32-S3-PICO-1-N8R8 |
ESP32-S3-PICO-1-N8R8
|
39 | 512 | 8 | 8 | LGA 7×7 |
Please open the DXF and ASC files by importing them. Download |
ESP32-S2 | Single-core 32-bit Xtensa® 240 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-S2 |
ESP32-S2
|
43 | 320 | N/A | N/A | QFN 7×7 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP32-S2R2 |
ESP32-S2R2
|
43 | 320 | N/A | 2 | QFN 7×7 |
Please open the DXF and ASC files by importing them. Download |
|||||||
|
ESP32-S2FH4 |
ESP32-S2FH4
|
43 | 320 | 4 | N/A | QFN 7×7 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP32-S2FN4R2 |
ESP32-S2FN4R2
|
43 | 320 | 4 | 2 | QFN 7×7 |
Please open the DXF and ASC files by importing them. Download |
ESP32-P Series
ESP32-P4
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-P4NRW16X |
ESP32-P4NRW16X
|
55 | 768 | N/A | 16 | QFN 10x10 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP32-P4NRW32X |
ESP32-P4NRW32X
|
55 | 768 | N/A | 32 | QFN 10x10 |
Please open the DXF and ASC files by importing them. Download |
|||||||
|
ESP32-P4NRW16 | 55 | 768 | N/A | 16 | QFN 10x10 |
Please open the DXF and ASC files by importing them. Download |
|||||||
| ESP32-P4NRW32 | 55 | 768 | N/A | 32 | QFN 10x10 |
Please open the DXF and ASC files by importing them. Download |
ESP32-C Series
ESP32-C6 | Single-core 32-bit RISC-V® 160 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-C6 |
ESP32-C6
|
30 | 512 | N/A | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP32-C6FH4 |
ESP32-C6FH4
|
22 | 512 | 4 | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
|||||||
| ESP32-C6FH8 |
ESP32-C6FH8 |
22 | 512 | 8 | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
ESP32-C61 | Single-core 32-bit RISC-V® 160 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-C61HR2 |
ESP32-C61HR2
|
30 | 320 | N/A | 2 | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP32-C61HF4 |
ESP32-C61HF4
|
30 | 320 | 4 | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
|||||||
| ESP32-C61HR8 | 30 | 320 | N/A | 8 | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
||||||||
| ESP32-C61NF8R8LA | 30 | 320 | 8 | 8 | LGA 5×5 |
Please open the DXF and ASC files by importing them. Download |
ESP32-C5 | Single-core 32-bit RISC-V® 240 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-C5HR8 |
ESP32-C5HR8
|
29 | 384 | N/A | 8 | QFN 6×6 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP32-C5HF4 |
ESP32-C5HF4
|
29 | 384 | 4 | N/A | QFN 6×6 |
Please open the DXF and ASC files by importing them. Download |
|||||||
| ESP32-C5HR2 (Sample) | 29 | 384 | N/A | 2 | QFN 6×6 |
Please open the DXF and ASC files by importing them. Download |
ESP32-C3 | Single-core 32-bit RISC-V® 160 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-C3 |
ESP32-C3
|
22 | 400 | N/A | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP32-C3FH4 |
ESP32-C3FH4
|
22 | 400 | 4 | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
|||||||
| ESP32-C3FH4X |
ESP32-C3FH4X
|
22 | 400 | 4 | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
|||||||
| ESP32-C3FN4 (EOL) | 22 | 400 | 4 | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
||||||||
| ESP32-C3FH8X | 22 | 400 | 8 | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
||||||||
|
ESP8685H4 |
ESP8685H4
|
15 | 400 | 4 | N/A | QFN 4×4 |
Please open the DXF and ASC files by importing them. Download |
ESP32-C2 | Single-core 32-bit RISC-V® 120 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP8684H2X |
ESP8684H2X
|
14 | 272 | 2 | N/A | QFN 4×4 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP8684H4X |
ESP8684H4X
|
14 | 272 | 4 | N/A | QFN 4×4 |
Please open the DXF and ASC files by importing them. Download |
ESP32-E Series
ESP32-E22 | Dual-core 32-bit RISC-V® 500 MHz
ESP32-H Series
ESP32-H4 | Dual-core 32-bit RISC-V® 96 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-H4HR2 | 40 | 384 | N/A | 2 | QFN 6×6 |
Please open the DXF and ASC files by importing them. Download |
|||||||
| ESP32-H4HF4 | 40 | 384 | 4 | N/A | QFN 6×6 |
Please open the DXF and ASC files by importing them. Download |
ESP32-H21 | Single-core 32-bit RISC-V® 96 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-H21HF4 | 19 | 320 | 4 | N/A | QFN 4×4 |
Please open the DXF and ASC files by importing them. Download |
ESP32-H2 | Single-core 32-bit RISC-V® 96 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-H2FH2S |
ESP32-H2FH2S
|
19 | 320 | 2 | N/A | QFN 4×4 |
Please open the DXF and ASC files by importing them. Download |
||||||
| ESP32-H2FH4S |
ESP32-H2FH4S
|
19 | 320 | 4 | N/A | QFN 4×4 |
Please open the DXF and ASC files by importing them. Download |

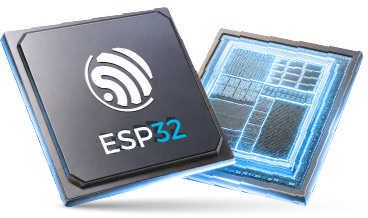

ESP32 Series
ESP32 | Dual-core 32-bit Xtensa® 240 MHz
| Name | PN | Datasheet | Buy | GPIO | RAM (KB) | Flash (MB) | PSRAM (MB) | Size (mm) | Certification | Environmental Compliance | Erratas | PCN | Advisory | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESP32-D0WD-V3 |
ESP32-D0WD-V3
|
34 | 520 | N/A | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
||||||
|
ESP32-D0WDRH2-V3 | 34 | 520 | N/A | 2 | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
|||||||
|
ESP32-U4WDH |
ESP32-U4WDH
|
34 | 520 | 4 | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
||||||
|
ESP32-PICO-V3 |
ESP32-PICO-V3
|
31 | 520 | 4 | N/A | LGA 7×7 |
Please open the DXF and ASC files by importing them. Download |
||||||
|
ESP32-PICO-V3-02 |
ESP32-PICO-V3-02
|
29 | 520 | 8 | 2 | LGA 7×7 |
Please open the DXF and ASC files by importing them. Download |
||||||
|
ESP32-PICO-D4 |
ESP32-PICO-D4
|
34 | 520 | 4 | N/A | LGA 7×7 |
Please open the DXF and ASC files by importing them. Download |
||||||
|
ESP32-S0WD |
ESP32-S0WD
|
34 | 520 | N/A | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
||||||
|
ESP32-D0WDQ6-V3 |
ESP32-D0WDQ6-V3
|
34 | 520 | N/A | N/A | QFN 6×6 |
Please open the DXF and ASC files by importing them. Download |
||||||
|
ESP32-D0WDQ6 |
ESP32-D0WDQ6
|
34 | 520 | N/A | N/A | QFN 6×6 |
Please open the DXF and ASC files by importing them. Download |
||||||
|
ESP32-D0WD |
ESP32-D0WD
|
34 | 520 | N/A | N/A | QFN 5×5 |
Please open the DXF and ASC files by importing them. Download |
