Unexpected Maker, or Seon Rozenblum, has officially released the FeatherS2, which is a tiny board equipped with Espressif Systems’ ESP32-S2, featuring 16 MB of SPI Flash, 8 MB of PSRAM, several I/O, and a USB-C port for power and programming.

Features & Specifications

• • 32-bit 240 MHz single-core processor
  • 16 MB SPI Flash
  • 8 MB extra PSRAM
  • 2.4 GHz Wi-Fi - 802.11b/g/n
  • 3D antenna
  • 2x 700 mA 3.3 V LDO regulator
  • Optimised power path for low-power battery usage
  • LiPo battery management
  • Power (red), Charge (orange) & IO13 (blue) LEDs
  • 21x GPIO
  • USB-C
  • APA102 RGB LED (CLK IO45, DATA IO40)
  • ALS-PT19 Ambient Light Sensor (IO14)
  • QWIIC/STEMMA connector
  • Feather format

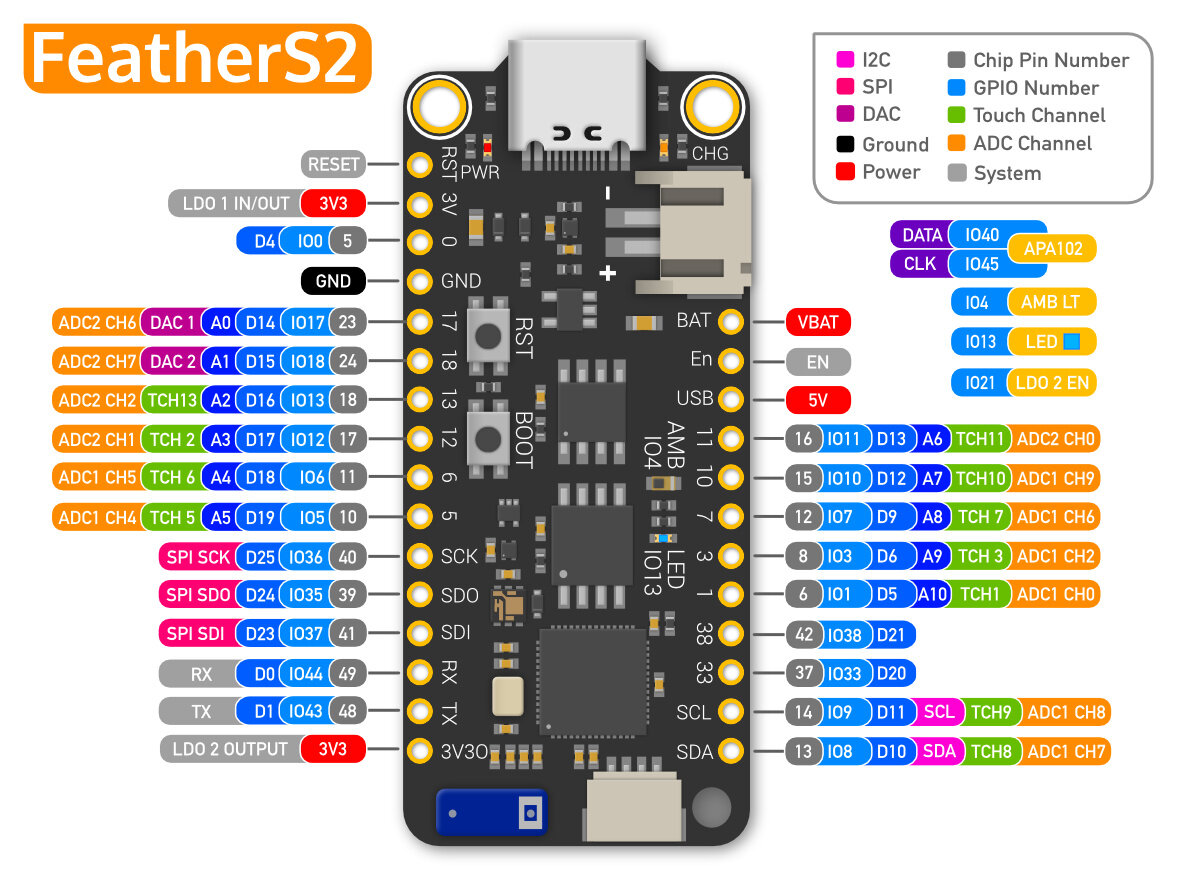

FeatherS2 Board Layout

Each FeatherS2 currently goes with the release candidate version (RC-0) of CircuitPython 6.0, which includes initial support for the ESP32-S2, as well as most of the ESP32-S2 features.

As newer versions of CircuitPython will be released, users will be able to update FeatherS2 from ciruitpython.org. There is also the early ESP-IDF support for users who prefer coding in C++.

To get all the details about FeatherS2, you can visit the Unexpected Maker website directly.
