ESP32-P Series
32-bit RISC-V MCU
- PC connectivity: USB
- SDK: ESP-IDF source code and example applications
Boards | User Guide | Buy | Description | Flash / PSRAM | Interfaces | UI | Related Products | Getting Started |
---|---|---|---|---|---|---|---|---|
ESP32-P4-Function-EV-Board is a multimedia development board based on the ESP32-P4 chip. ESP32-P4 chip features a dual-core 400 MHz RISC-V processor and supports up to 32 MB PSRAM. In addition, ESP32-P4 supports USB 2.0 specification, MIPI-CSI/DSI, H264 Encoder, and other various peripherals. With all of its outstanding features, the board is an ideal choice for developing low-cost, high-performance, low-power network-connected audio and video products. The 2.4 GHz Wi-Fi 6 & Bluetooth 5 (LE) module ESP32-C6-MINI-1 serves as the Wi-Fi and Bluetooth module of the board. It also includes a 7-inch capacitive touch screen with a resolution of 1024 x 600. The development board is suitable for prototyping a wide range of products, including visual doorbells, network cameras, smart home central control screens, LCD electronic price tags, two-wheel vehicle dashboards, etc. |
16 MB Flash on board; 32 MB in-package PSRAM; 4 MB in-package flash in ESP32-C6-MINI-1 |
MIPI CSI, MIPI DSI, USB High-Speed Device, USB High-speed Host, USB Serial/Jtag, USB Full-speed, RJ45, I/O, TF card |
Camera, LCD Screen, 1x Microphone, 1x Speaker, Buttons |
ESP32-C6-MINI-1 |
User Guide Demo Code |
ESP32-S Series
ESP32-S3 Series
32-bit MCU & 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
- PC connectivity: USB
- SDK: ESP-IDF source code and example applications
Boards | User Guide | Buy | Description | Flash / PSRAM | Interfaces | UI | Related Products | Getting Started |
---|---|---|---|---|---|---|---|---|
The ESP32-S3-BOX-3 is a next-generation development tool designed for AIoT, Edge AI, and IIoT applications. It is based on the powerful ESP32-S3 SoC and features a compact and beautiful enclosure also provides rich assemblies, empowering developers to easily customize and expand its functionality. Leveraging Espressif's reliable software solutions such as ESP-BOX, ESP-SR, ESP-Rainmaker, and ESP-Matter, the ESP32-S3-BOX-3 is capable of meeting the needs of prototyping new projects or building complex IoT systems. It strikes a perfect balance between form and function, propelling the future of development board ecology. |
1.8V 16 MB Quad Flash + 1.8V 16 MB Octal PSRAM |
USB-C, USB-A, I/O, Pmod™ Compatible Interlace, MicroSD Slot, 18650 Battery Slot |
LCD Screen, Microphones, Speaker, LED, Buttons, Temp&Hum Sensor, Radar, IR Sensor |
ESP32-S3-WROOM-1 |
User Guide Demo Code |
|||
The ESP32-S3-USB-Bridge is a mini development board based on the ESP32-S3 chip, featuring the onboard ESP32-S3-MINI-1 module, WS2812 RGB LED, serial communication indicator light, and a target chip control button. It offers optional USB Type-C (default) or USB Type-A interfaces. Built upon Espressif's ESP-USB-Bridge project, it supports functions such as USB to serial, USB to JTAG, drag-and-drop programming, wireless debugging, and wireless programming. This board can be used for debugging and programming ESP series chips and other chips. |
4 MB Flash + 2 MB PSRAM |
I/O USB-C |
Buttons, LEDs |
ESP32-S3-MINI-1 |
Getting Started Demo Code |
|||
AliExpress/ESP32-S3-DevKitC-1-N8
Digi-Key/ESP32-S3-DevKitC-1-N8 Mouser/ESP32-S3-DevKitC-1-N8 Amazon US/ESP32-S3-DevKitC-1-N8 AliExpress/ESP32-S3-DevKitC-1-N8R2 Digi-Key/ESP32-S3-DevKitC-1-N8R2 Mouser/ESP32-S3-DevKitC-1-N8R2 Amazon US/ESP32-S3-DevKitC-1-N8R2 AliExpress/ESP32-S3-DevKitC-1-N8R8 Digi-Key/ESP32-S3-DevKitC-1-N8R8 Mouser/ESP32-S3-DevKitC-1-N8R8 Amazon US/ESP32-S3-DevKitC-1-N8R8 AliExpress/ESP32-S3-DevKitC-1-N32R8V Digi-Key/ESP32-S3-DevKitC-1-N32R8V Mouser/ESP32-S3-DevKitC-1-N32R8V Amazon US/ESP32-S3-DevKitC-1-N32R8V Digi-Key/ESP32-S3-DevKitC-1U-N8 Mouser/ESP32-S3-DevKitC-1U-N8 Amazon US/ESP32-S3-DevKitC-1U-N8 Mouser/ESP32-S3-DevKitC-1U-N8R8 Digi-Key/ESP32-S3-DevKitC-1U-N8R2 Mouser/ESP32-S3-DevKitC-1U-N8R2 AliExpress-SH/ESP32-S3-DevKitC-1U-N8R8 Digi-Key/ESP32-S3-DevKitC-1U-N8R8 |
ESP32-S3 general-purpose development board, based on ESP32-S3-WROOM-1/1U or ESP32-S3-WROOM-2/2U. It has all the ESP32-S3 pins exposed and is easy to connect and use. |
8 MB Flash 8 MB Flash + 3.3V 2 MB Quad PSRAM 8 MB Flash + 3.3V 8 MB Octal PSRAM 32 MB Flash + 1.8V 8 MB Octal PSRAM (Suitable for ESP32-S3-WROOM-2) |
I/O USB |
Buttons, LEDs |
ESP32-S3-WROOM-1 ESP32-S3-WROOM-1U ESP32-S3-WROOM-2 ESP32-S3-WROOM-2U |
User Guide |
||
ESP32-S3 general-purpose development board, based on ESP32-S3-MINI-1 or ESP32-S3-MINI-1U. It has all the ESP32-S3 pins exposed and is easy to connect and use. |
8 MB Flash |
I/O USB |
Buttons, LEDs |
ESP32-S3-MINI-1 ESP32-S3-MINI-1U |
User Guide |
|||
ESP32-S3-EYE is a small-sized AI development board. It is based on the ESP32-S3 SoC and ESP-WHO, Espressif’s AI development framework. It features a 2-Megapixel camera, an LCD display, and a microphone, which are used for image recognition and audio processing. ESP32-S3-EYE offers plenty of storage, with an 8 MB Octal PSRAM and a 8 MB flash. It also supports image transmission via Wi-Fi and debugging through a Micro-USB port. |
8 MB Flash + 8 MB PSRAM |
USB |
Camera, LCD, Microphone, Buttons, TF card |
ESP32-S3-WROOM-1 |
User Guide |
|||
ESP32-S3-USB-OTG is targeting at applications based on USB interface. It is equipped with the ESP32-S3-MINI-1-N8 module. Combined with the Wi-Fi functionality provided by the SoC, the USB interface can be used for video streaming over Wi-Fi, accessing the Internet through a 4G hotspot, connecting to a wireless USB disk, and many other applications. |
8 MB Flash embedded in chip |
USB Device, USB Host, SD Card |
LCD Screen, LED, Button |
ESP32-S3-MINI-1 |
User Guide Demo Code |
|||
The ESP32-S3-Korvo-1 is an AI development board. It is based on the ESP32-S3 SoC and ESP-Skainet, Espressif’s speech recognition SDK. It features a three-microphone array which is suitable for far-field voice pick-up with low-power consumption. The ESP32-S3-Korvo-1 supports voice wake-up and offline speech command recognition in Chinese and English languages. With ESP-Skainet, you can develop a variety of speech recognition applications, such as smart displays, smart plugs, smart switches, etc. |
16 MB Flash + 8 MB PSRAM |
I/O USB |
Buttons, TF card, LEDs, Microphones |
ESP32-S3-WROOM-1 |
User Guide |
|||
ESP32-S3-Korvo-2 is an ESP32-S3 based multimedia development board. It is equipped with a two-microphone array which is suitable for voice recognition and near/far-field voice wake-up applications. The board integrates multiple peripherals such as LCD, camera, and TF. It also supports JPEG video stream processing. With all of its outstanding features, the board is an ideal choice for the development of low-cost and low-power audio and video products. |
16 MB Flash + 8 MB PSRAM |
I/O USB |
Button, TF Card, Camera, LCD |
ESP32-S3-WROOM-1 |
User Guide |
|||
ESP32-S3-LCD-Ev-Board and ESP32-S3-LCD-Ev-Board-2 are two ESP32-S3-based development boards for RGB interface LCD, both of which utilize the module with 16MB Flash and 8-line 8MB PSRAM memory.They are equipped with a 3.95'' 480 x 480 resolution and a 4.3'' 800 x 480 resolution capacitive touch screen respectively. They also house dual array microphones for offline voice wake-up and recognition, and features touch screen and voice interaction. The boards are suitable for prototype construction of products such as smart central control screens, 86-type switch panels, home appliance control panels, electric vehicle dashboards, visual doorbells. |
16 MB Flash + 8 MB PSRAM |
I/O USB-C UART |
LCD Screen, Microphones, Speaker, LED, Buttons |
ESP32-S3-WROOM-1 |
User Guide |
ESP32-S2 Series
32-bit MCU & 2.4 GHz Wi-Fi
- PC connectivity: USB
- SDK: ESP-IDF source code and example applications
ESP32-C Series
ESP32-C6 Series
32-bit RISC-V MCU & 2.4 GHz Wi-Fi 6 & Bluetooth 5 (LE) & IEEE 802.15.4
- PC connectivity: USB
- SDK: ESP-IDF source code and example applications
Boards | User Guide | Buy | Description | Flash / PSRAM | Interfaces | UI | Related Products | Getting Started |
---|---|---|---|---|---|---|---|---|
ESP32-C6 general-purpose development board, based on ESP32-C6-WROOM-1 or ESP32-C6-WROOM-1U. It has all the ESP32-C6 pins exposed and is easy to connect and use. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C6-DevKitC-1 on a breadboard. |
8 MB Flash |
I/O USB |
Buttons, LEDs |
ESP32-C6-WROOM-1 ESP32-C6-WROOM-1U |
User Guide |
|||
ESP32-C6 general-purpose development board, based on ESP32-C6-MINI-1 or ESP32-C6-MINI-1U. It has all the ESP32-C6 pins exposed and is easy to connect and use. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C6-DevKitM-1 on a breadboard. |
4 MB Flash |
I/O USB |
Buttons, LEDs |
ESP32-C6-MINI-1 ESP32-C6-MINI-1U |
User Guide |
ESP32-C61 Series
32-bit RISC-V MCU & 2.4 GHz Wi-Fi 6 & Bluetooth 5 (LE)
- PC connectivity: USB
- SDK: ESP-IDF source code and example applications
Boards | User Guide | Buy | Description | Flash / PSRAM | Interfaces | UI | Related Products | Getting Started |
---|---|---|---|---|---|---|---|---|
|
ESP32-C61-DevKitC-1 is an entry-level development board based on ESP32-C61-WROOM-1, embedded with 8 MB SPI flash and 2 MB PSRAM. This board integrates complete 2.4G Wi-Fi 6 and Bluetooth® Low Energy functions. |
8MB Flash + 2MB PSRAM |
I/O USB |
Buttons, LEDs |
ESP32-C6-WROOM-1 |

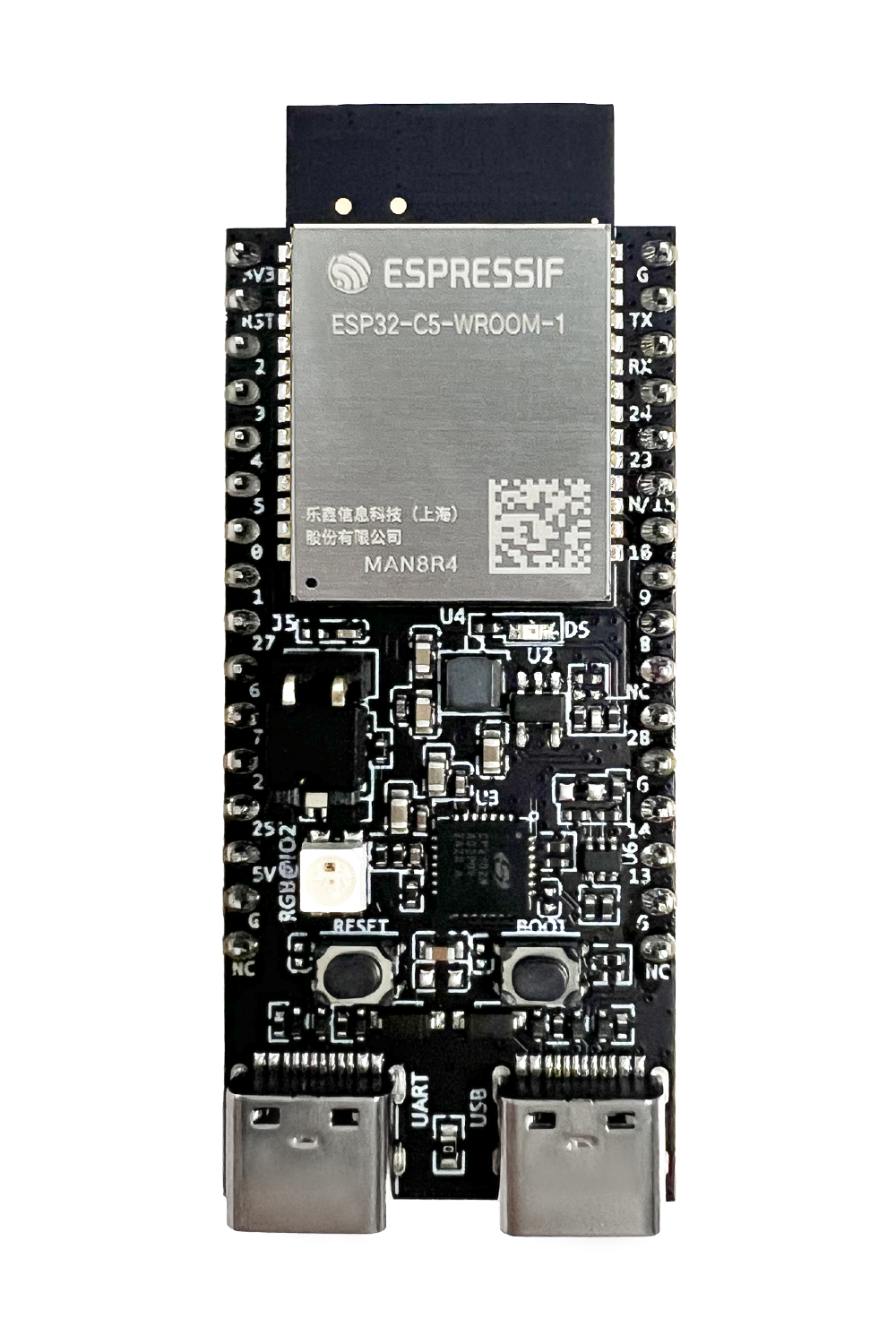

ESP32-C5 Series
32-bit RISC-V MCU & 2.4 and 5 GHz Wi-Fi 6 & Bluetooth 5 (LE) & IEEE 802.15.4
- PC connectivity: USB
- SDK: ESP-IDF source code and example applications
ESP32-C3 Series
32-bit RISC-V MCU & 2.4 GHz Wi-Fi & Bluetooth LE 5 (LE)
- PC connectivity: USB
- SDK: ESP-IDF source code and example applications
Boards | User Guide | Buy | Description | Flash / PSRAM | Interfaces | UI | Related Products | Getting Started |
---|---|---|---|---|---|---|---|---|
ESP32-C3-DevKitM-1 is an entry-level development board equipped with ESP32-C3-MINI-1 or ESP32-C3-MINI-1U. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitM-1 on a breadboard. |
4 MB Flash |
I/O USB |
Buttons, LEDs |
ESP32-C3-MINI-1 ESP32-C3-MINI-1U |
User Guide |
|||
ESP32-C3-DevKitC-02 is an entry-level development board equipped with ESP32-C3-WROOM-02 or ESP32-C3-WROOM-02U. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitC-1 on a breadboard. |
4 MB Flash |
I/O USB |
Buttons, LEDs |
ESP32-C3-WROOM-02 ESP32-C3-WROOM-02U |
User Guide |
|||
ESP32-C3-DevKit-RUST-1 is based on the ESP32-C3, a single-core Wi-Fi and Bluetooth 5 (LE) microcontroller SoC, based on the open-source RISC-V architecture. This special board also includes the ESP32-C3-MINI-1 module, a 6DoF IMU, a temperature and humidity sensor, a Li-Ion battery charger, and a Type-C USB. The board is designed to be easily used in training sessions, demonstrating Rust capabilities with all the board peripherals. |
4 MB Flash |
I/O USB type-C |
Button, LED, IMU, Temperature and humidity sensor |
ESP32-C3-MINI-1 |
User Guide Training |
|||
ESP32-C3-AWS-ExpressLink-DevKit is a development board based on the ESP32-C3-MINI-1-N4-A module. Its pin layout is compatible with that of the Arduino Zero development board, and therefore ESP32-C3-AWS-ExpressLink-DevKit can be directly plugged in Arduino Zero, or connected with other host boards and peripherals via jumpers. |
4 MB Flash |
Pin Headers Micro USB |
Button, LEDs |
ESP32-C3-MINI-1 |
User Guide |
|||

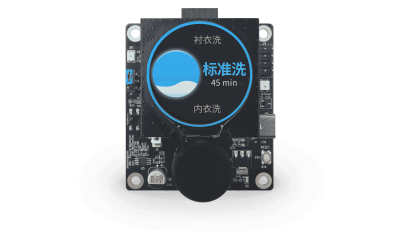

ESP32-C3-LCDKit is a development board used for evaluating rotary knob applications. The board consists of a mainboard and a subboard. The mainboard integrates the ESP32-C3-MINI-1 module, a speaker, an EC11 rotary encoder, an infrared sensor, and more. The subboard features a 1.28-inch SPI interface screen with a resolution of 240 x 240. The ESP32-C3 offers cost advantages and industry-leading low power consumption, making it an ideal choice for building SPI interface screen solutions such as knob screens and small-sized display found in home appliances like washing machines, body fat scales, electric toothbrushes, and more. |
4 MB Flash |
I/O USB-C |
LCD Screen, Speaker, LED, Buttons, EC11 rotary encoder, Infrared sensor |
ESP32-C3-MINI-1 |
User Guide Demo Code |
|||
ESP32-C3-Lyra is an ESP32-C3-based audio development board produced by Espressif for controlling light with audio. The board has control over the microphone, speaker, and LED strip, perfectly matching customers’ product development needs for ultra-low-cost and high-performance audio broadcasters and rhythm light strips. |
4 MB Flash |
I/O UART |
Key, RGB, Microphone, Speaker |
ESP32-C3-WROOM-02 |
User Guide |
ESP32-C2 Series
32-bit RISC-V MCU & 2.4 GHz Wi-Fi & Bluetooth LE 5 (LE)
- PC connectivity: USB
- SDK: ESP-IDF source code and example applications
Boards | User Guide | Buy | Description | Flash / PSRAM | Interfaces | UI | Related Products | Getting Started |
---|---|---|---|---|---|---|---|---|
The ESP8684-DevKitC-02 is an entry-level development board based on ESP8684-WROOM-02C, ESP8684-WROOM-02UC. This board integrates complete Wi-Fi and Bluetooth LE functions. Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP8684-DevKitC-02 on a breadboard. |
4 MB Flash |
I/O
USB |
Buttons, LEDs |
ESP8684-WROOM-02C |
User Guide |
|||
The ESP8684-DevKitM-1 is an entry-level development board based on ESP8684-MINI-1 or ESP8684-MINI-1U. This board integrates complete Wi-Fi and Bluetooth LE functions. Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP8684-DevKitM-1 on a breadboard. |
4 MB Flash |
I/O USB |
Buttons, LEDs |
ESP8684-MINI-1 ESP8684-MINI-1U |
User Guide |
ESP32-H Series
ESP32-H2 Series
32-bit RISC-V MCU & Bluetooth 5 (LE) & IEEE 802.15.4
- PC connectivity: USB
- SDK: ESP-IDF source code and example applications
Boards | User Guide | Buy | Description | Flash / PSRAM | Interfaces | UI | Related Products | Getting Started |
---|---|---|---|---|---|---|---|---|
ESP32-H2-DevKitM-1 is an entry-level development board based on Bluetooth® Low Energy and IEEE 802.15.4 combo modules ESP32-H2-MINI-1 or ESP32-H2-MINI-1U. Most of the I/O pins on the ESP32-H2-MINI-1 module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-H2-DevKitM-1 on a breadboard. |
4 MB Flash |
I/O USB |
Buttons, LEDs |
ESP32-H2-MINI-1 ESP32-H2-MINI-1U |
User Guide |
|||
AliExpress/ESP Thread Border Router Zigbee Gateway Board
Digi-Key/ESP Thread Border Router Zigbee Gateway Board Mouser/ESP Thread Border Router Zigbee Gateway Board Amazon US/ESP Thread Border Router Zigbee Gateway Board CEI/ESP Thread Border Router Zigbee Gateway Board AliExpress/ESP Thread Border Router Zigbee Gateway Sub-Ethernet Amazon US/ESP Thread Border Router Zigbee Gateway Sub-Ethernet |
ESP Thread Border Router/Zigbee Gateway board integrates the ESP32-S3 SoC and the ESP32-H2 RCP, enabling the development of Thread Border Router and Zigbee Gateway products. Espressif's Thread Border Router solution complies with Thread 1.3 and supports the Matter application. It offers various features including Bi-directional IPv6 connectivity, Service Discovery Delegate, Service Registration Server, Multicast Forwarding, NAT64, and a user-friendly Web GUI for easy configuration. Additionally, the board supports the addition of daughter boards to expand its functionality such as: Ethernet interface (available for separate purchase), HMI and Voice Control. |
8 MB Flash and 2 MB PSRAM in ESP32-S3-WROOM-1 + 2 MB Flash in ESP32-H2-MINI-1 |
I/O USB type-C |
Button, LED |
ESP32-S3-WROOM-1 ESP32-H2-MINI-1 |
User Guide Demo Code |
ESP32 Series
32-bit MCU & 2.4 GHz Wi-Fi & BT/Bluetooth LE
- PC connectivity: USB
- Power supply options: USB (by default), or 5V/GND header pins, or 3V3/GND header pins
- SDK: ESP-IDF source code and example applications
Boards | User Guide | Buy | Description | Flash / PSRAM | Interfaces | UI | Related Products | Getting Started |
---|---|---|---|---|---|---|---|---|
ESP32-DevKitC is an entry-level development board. It has all the ESP32 pins exposed and it easy to connect and use. |
4 / 8 MB Flash |
I/O USB |
Buttons, LEDs |
ESP32-WROOM-32E ESP32-WROOM-32UE ESP32-WROOM-DA ESP32-WROVER-E ESP32-WROVER-IE |
Getting Started Demo Code |
|||

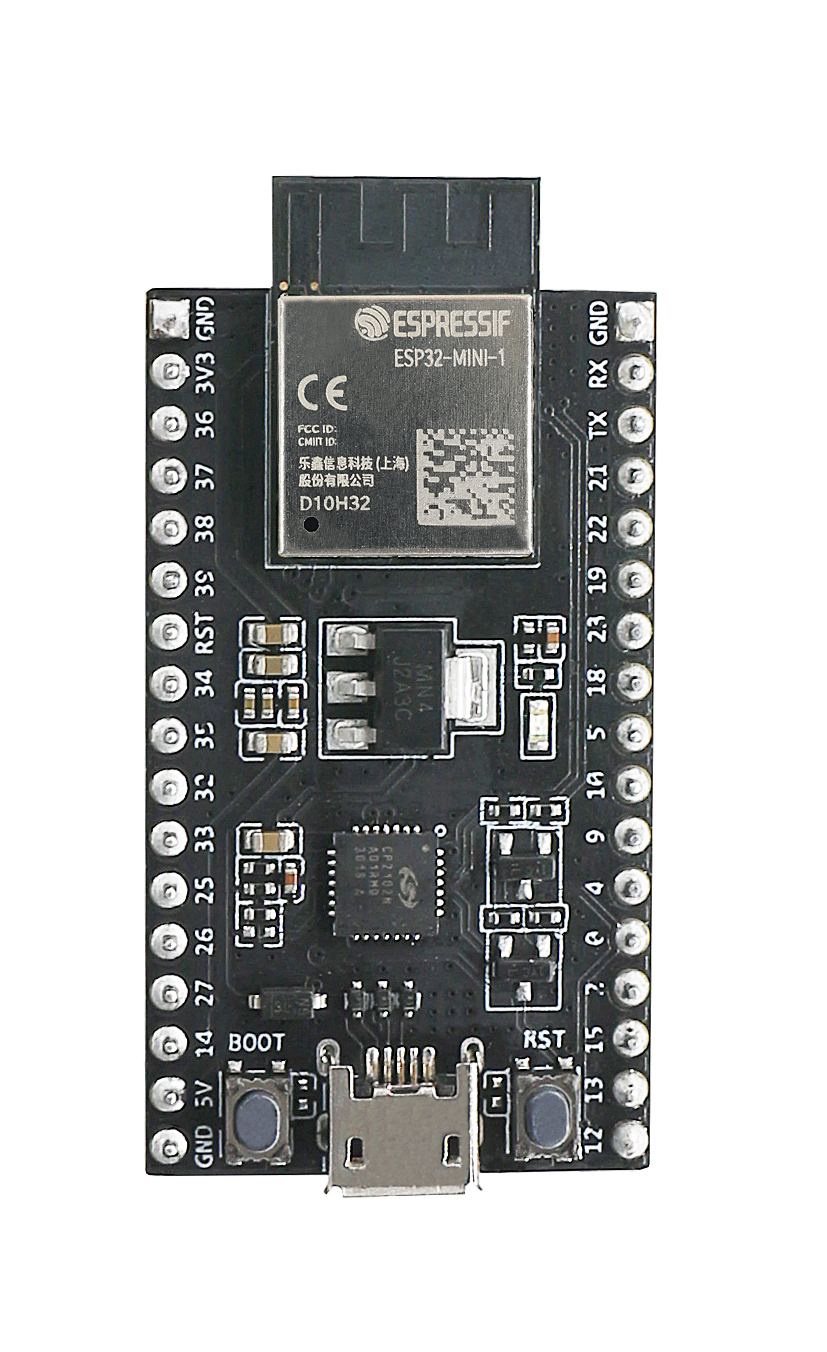

ESP32-DevKitM-1 is a ESP32-MINI-1-based development board produced by Espressif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-DevKitM-1 on a breadboard. |
4 MB Flash |
|
Buttons, LEDs |
ESP32-MINI-1 ESP32-MINI-1U |
User Guide |
|||
ESP32-PICO-KIT-1 is an ESP32-PICO-V3 based development board produced by Espressif. ESP32-PICO-KIT-1 provides the users with hardware for development of applications based on the ESP32, making it easier for users to explore ESP32 functionalities. |
4 MB Flash |
I/O USB |
Buttons, LEDs |
ESP32-PICO-V3 |
User Guide |
|||
ESP32-PICO-V3-ZERO-DevKit is a development board based on ESP32-PICO-V3-ZERO (ACK) module. Its pin layout is compatible with that of Arduino Zero development board, therefore, this ESP32-PICO-V3-ZERO-DevKit can directly plug in Arduino Zero board, or connect with other host boards and peripherals via jumper. |
4 MB Flash |
I/O USB |
Buttons, LED |
ESP32-PICO-V3-ZERO |
Getting Started Demo Code |
|||
ESP32-PICO-DevKitM-2 is a ESP32-PICO-MINI-02-based development board produced by Espressif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-DevKitM-1 on a breadboard. |
8 MB Flash + 2 MB PSRAM |
|
Buttons, LEDs |
ESP32-PICO-MINI-02 ESP32-PICO-MINI-02U |
User Guide |
|||

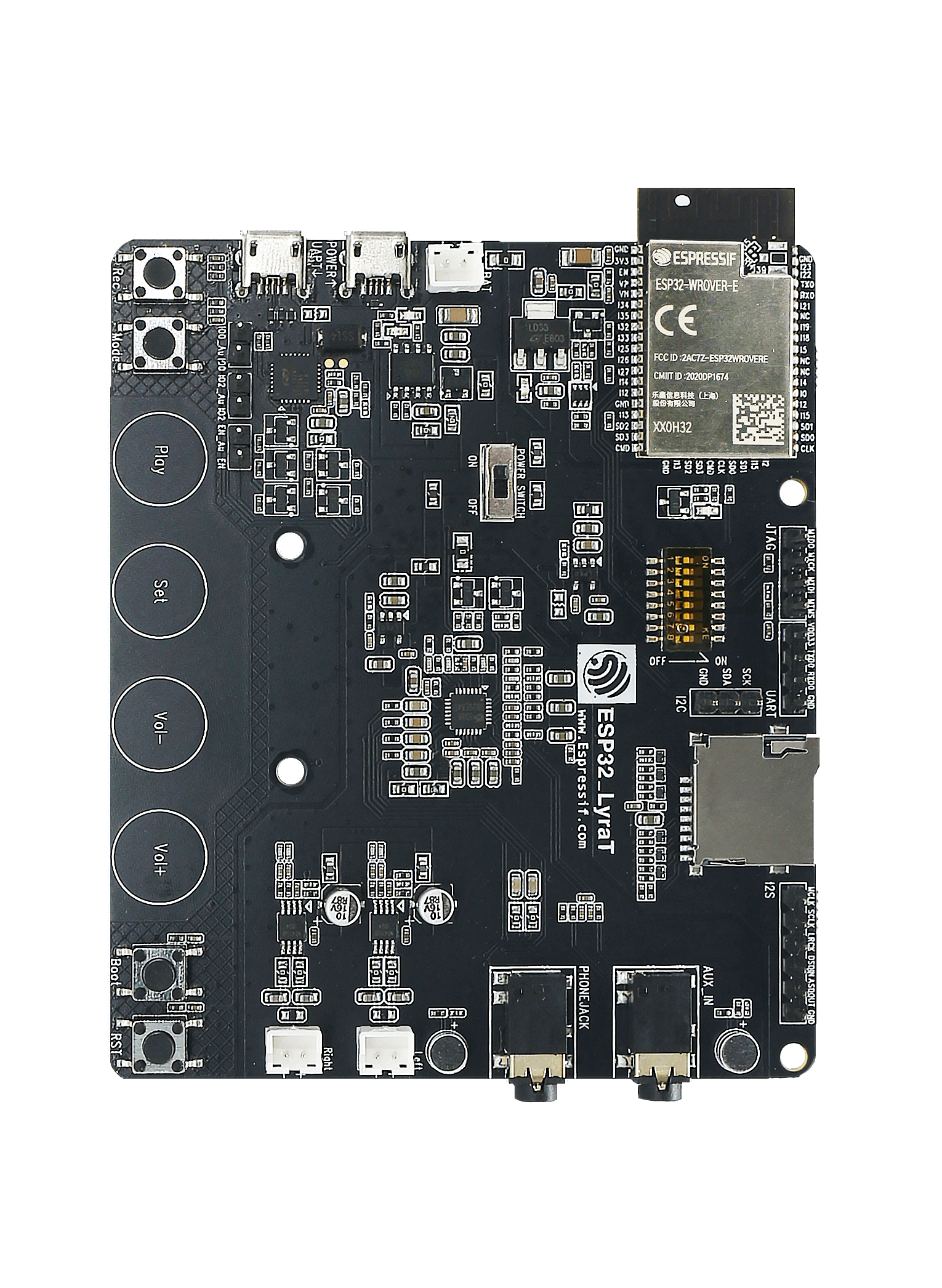

The ESP32-LyraT development board is designed for the speech and voice recognition market. It integrates the ESP32-WROVER-E module, which includes a dual-core processor and 4.5 MB of operating memory. With this development board, only few peripheral devices are required for implementing a highly-integrated audio solution. |
4 MB Flash + 8 MB PSRAM |
|
Touch Buttons, Keys, LEDs |
ESP32-WROVER-E |
Demo Code |
|||
ESP32-LyraT-Mini is a lightweight audio development board based on ESP32-WROVER-E, which implements AEC, AGC, NS WWE (wake word engine) and other audio signal processing technologies. |
8 MB Flash + 8 MB PSRAM |
I2S I2C SDIO ADC UART GPIO |
Button, LED |
ESP32-WROVER-E |
Demo Code |
|||
ESP32-LyraTD-SYNA is one of Espressif’s Audio Development Board based on ESP32 MCU and Synaptics DSP. It is an Acoustic Echo Cancelation (AEC) solution, supporting voice recognition and voice wake-up. It also supports connection to Amazon’s AVS (Alexa Voice Service), Google's Dialogflow and Google's GVA (Google Voice Assistant). |
16 MB Flash + 8 MB PSRAM |
I2S I2C ADC UART GPIO |
Buttons, LED |
ESP32-WROVER-E |
Demo Code |
|||

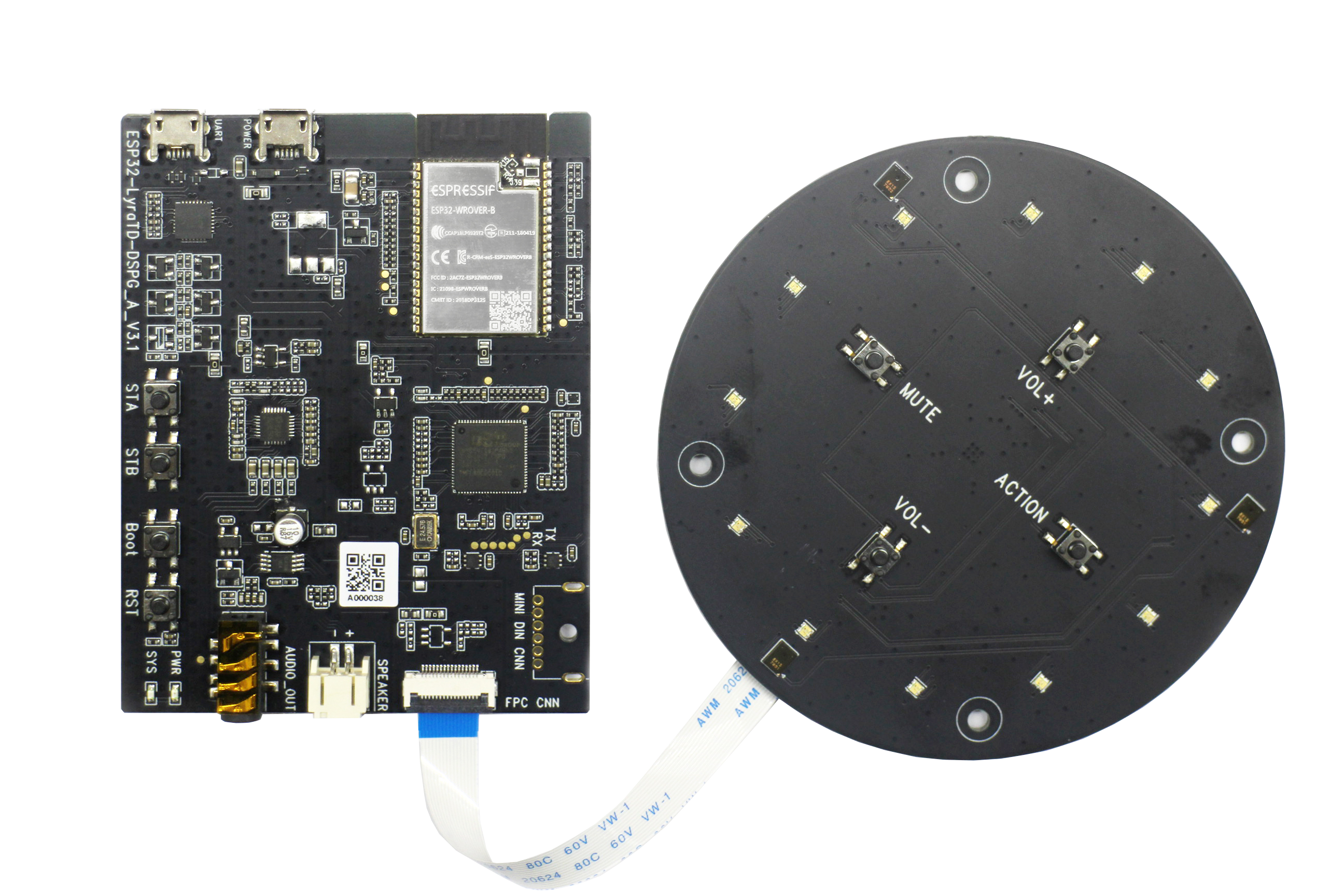

ESP32-LyraTD-DSPG is based on ESP32-WROVER-B, a BT/Wi-Fi combo module, and a digital signal processor (DSP) that features a three-microphone array for noise reduction, echo cancellation, beamforming and wake-word detection. ESP32-LyraTD-DSPG is integrated with peripheral devices and consists of two development boards. The sub board mainly consists of the microphone array, function keys and LEDs. The main board is integrated with power management, Wi-Fi and audio modules like dsp, codec and power amplifier. The two boards can be connected with FPC. |
16 MB Flash + 8 MB PSRAM |
USB FPC Speaker Phone Jack |
Button, Microphone, LED |
ESP32-WROVER-B |
Demo Code |
|||
ESP32-Vaquita-DSPG is Espressif’s new Alexa built-in solution powered by ESP32 and DSP Group’s DBMD5P audio SoC. With a 2-Mic array which allows for a 360-degree pick-up, the solution provides a superior far-field voice recognition performance. The new ESP32-Vaquita-DSPG development kit is a turnkey solution for easily creating Alexa built-in connected devices that provide out-of-the-box voice enablement and AWS-IoT cloud connectivity. |
16 MB Flash + 8 MB PSRAM |
|
5x RGB LEDs, 2x Function Keys |
ESP32-WROVER-E |
Demo Code |
|||
ESP32-Korvo is an ESP32-based audio development board with microphone array, together with Espressif's speech recognition SDK ESP-Skainet, ESP32-Korvo is suitable for far-field speech recognition applications with low power consumption. ESP32-Korvo is composed of two boards connected by an FPC cable: the main board contains ESP32-WROVER-E module, power port, micro SD card slot, earphone and speaker connectors; the sub board contains microphone array, function buttons and LEDs. |
16 MB Flash + 8 MB PSRAM |
|
Buttons, Speaker, LEDs |
ESP32-WROVER-E |
Demo Code |
|||
ESP32-LCD-Kit is an HMI (Human Machine Interface) development board based on ESP32-DevKitC (need to purchase if you didn’t have one). ESP32-LCDKit is integrated with such peripherals as SD-Card, DAC-Audio, and can be connected an external display. The board is mainly used for HMI-related development and evaluation. Development board reserved screen interface type: SPI serial interface, 8-bit parallel interface, 16-bit parallel interface. |
N/A |
I/O USB |
LCD, Speaker |
ESP32-DevKitC |
User Guide Demo Code |
|||
ESP32-Ethernet-Kit is an ESP32-based development board produced by Espressif. It consists of two development boards, the Ethernet board A and the PoE board B, The Ethernet board contains Bluetooth / Wi-Fi dual-mode ESP32-WROVER-E module and IP101GRI, a Single Port 10/100 Fast Ethernet Transceiver (PHY). The PoE board (B) provides power over Ethernet functionality. The A board can work independently, without the board B installed. |
4 MB Flash+ 8 MB PSRAM |
|
N/A |
ESP32-WROVER-E |
Getting Started Demo Code |
ESP8266 Series
32-bit MCU & 2.4 GHz Wi-Fi
- PC connectivity: USB
- SDK: ESP8266 RTOS SDK source code and example applications
Boards | User Guide | Buy | Description | Flash / PSRAM | Interfaces | UI | Related Products | Getting Started |
---|---|---|---|---|---|---|---|---|
ESP8266-DevKitC is an Espressif compact development board based on ESP8266 modules. All of the I/O pins of the module are broken out to the female header connectors on both sides of the board for easy interfacing. Developers can connect these pins to peripherals as needed. |
2 MB Flash |
|
Buttons |
ESP-WROOM-02D ESP-WROOM-02U |
Getting Started Demo Code |
|||
Other IoT DevKits
32-bit MCU & 2.4 GHz Wi-Fi & BT/Bluetooth LE & Sensor
- PC connectivity: USB
- SDK: ESP-IOT-SOLUTION source code and example applications
Boards | User Guide | Buy | Description | Flash / PSRAM | Interfaces | UI | Related Products | Getting Started |
---|---|---|---|---|---|---|---|---|
ESP-Prog is one of Espressif’s development and debugging tools, with functions including automatic firmware downloading, serial communication, and JTAG online debugging. ESP-Prog's automatic firmware downloading and serial communication functions are supported on both the ESP8266 and ESP32 platforms, while the JTAG online debugging is supported only on the ESP32 platform. ESP-Prog uses FT2232HL as its USB Bridge Controller chip. |
N/A |
|
LED, Keys |
User Guide |
