Production Testing Equipment
Espressif provides a series of basic production testing equipment for its products as reference designs.
| Equipment | image | 产品类型 | Description | Related Product | Large image |
|---|---|---|---|---|---|
|

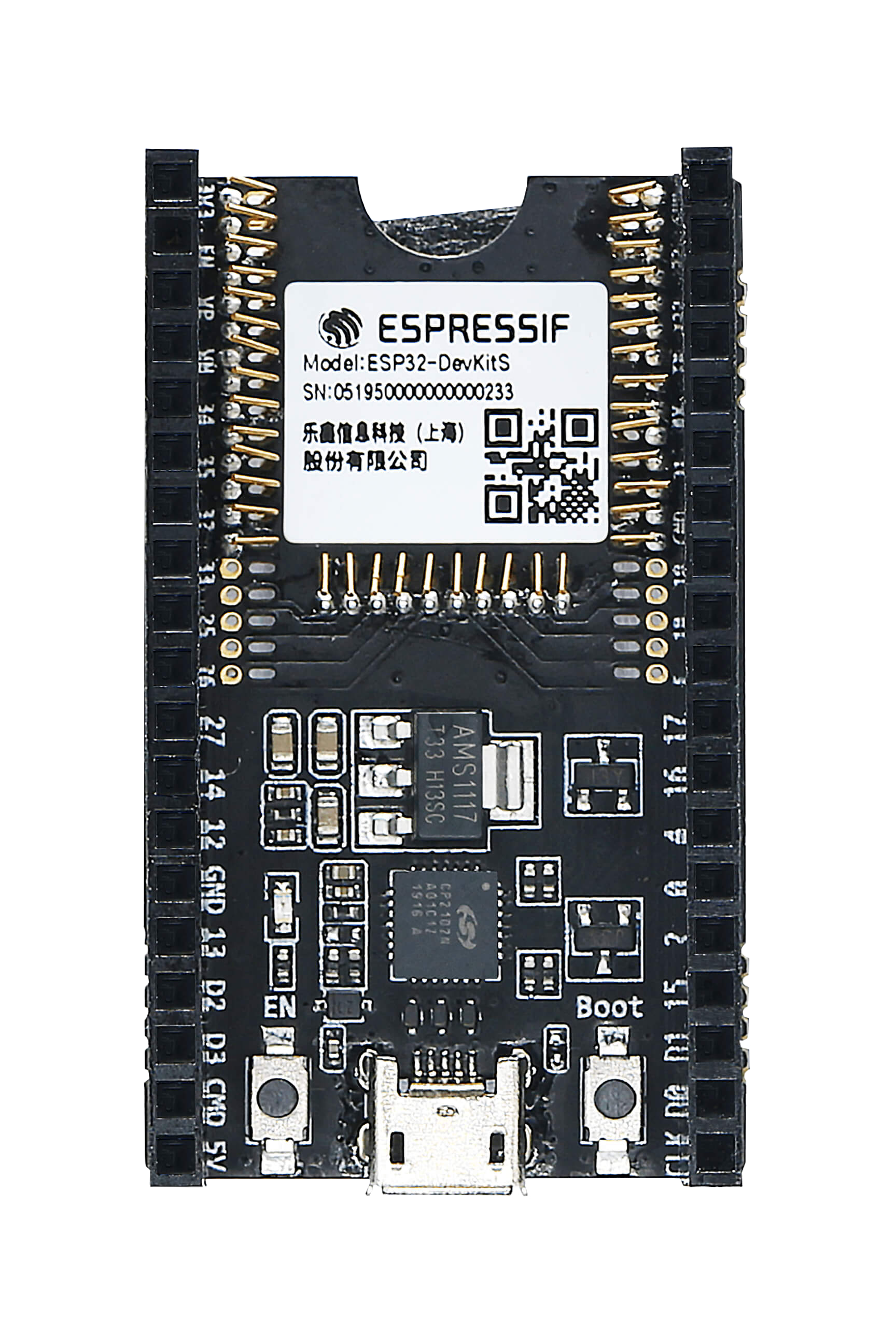

ESP32-DevKitS(-R) |
 |
烧录底板 |

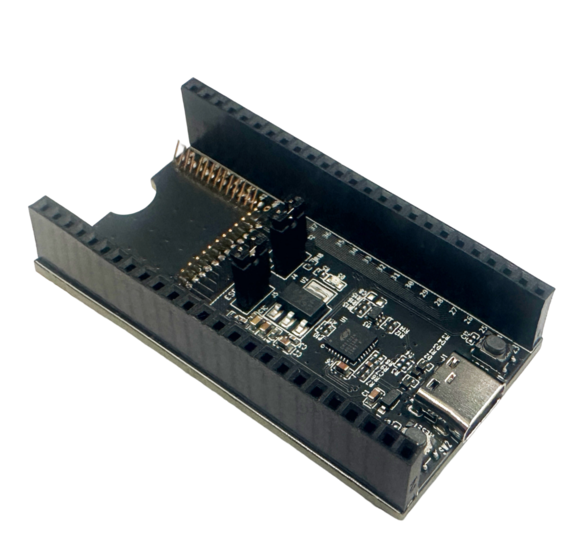

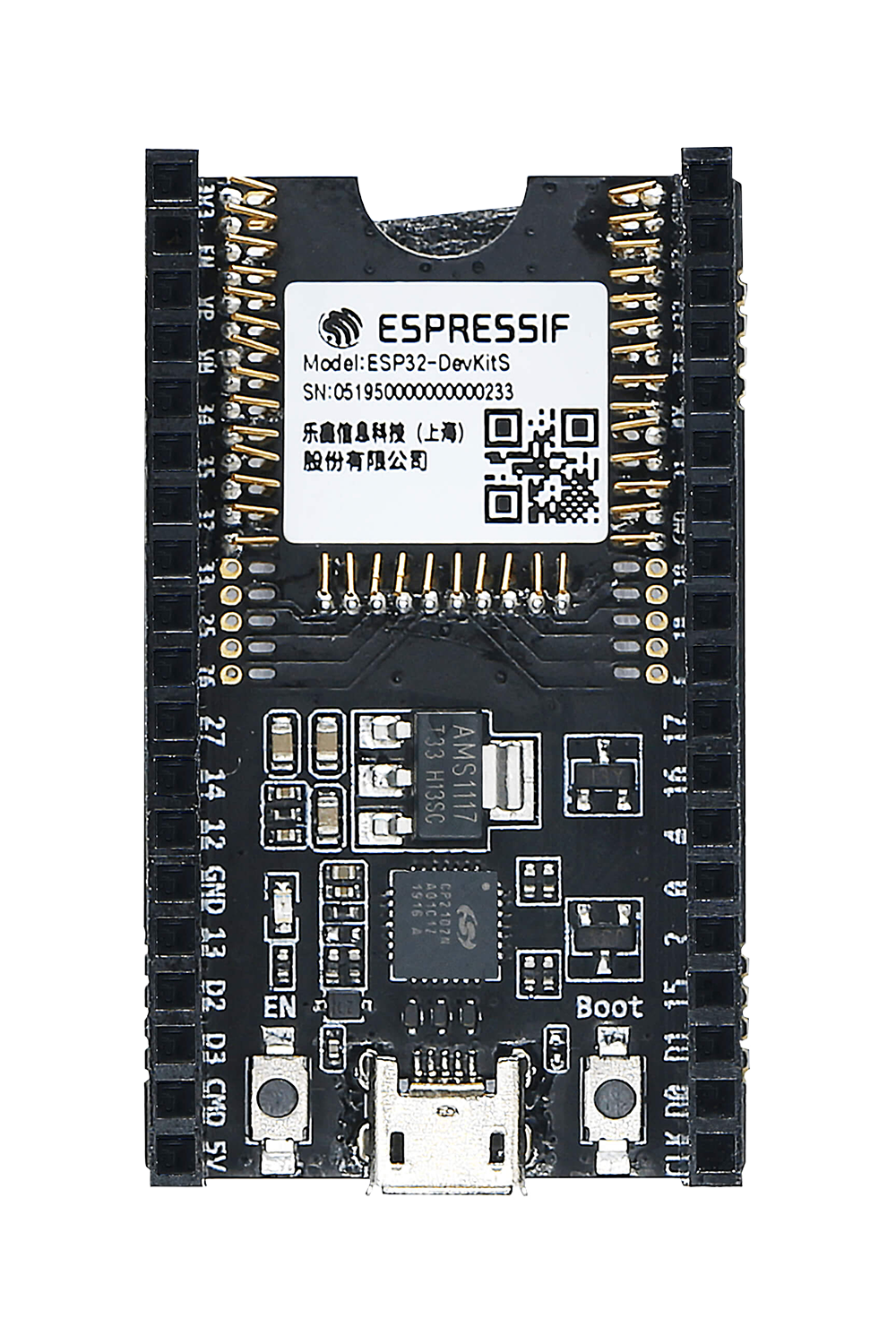

ESP32-DevKitS(-R) is a combination of two board names: ESP32-DevKitS and ESP32-DevKitS-R. With a module mounted, ESP32-DevKitS(-R) can be used as a mini development board like ESP32-DevKitC. |
ESP32-WROOM-32E ESP32-WROOM-32UE ESP32-WROOM-32SE ESP32-WROVER-E ESP32-WROVER-IE ESP32-SOLO-1 |
 |
|

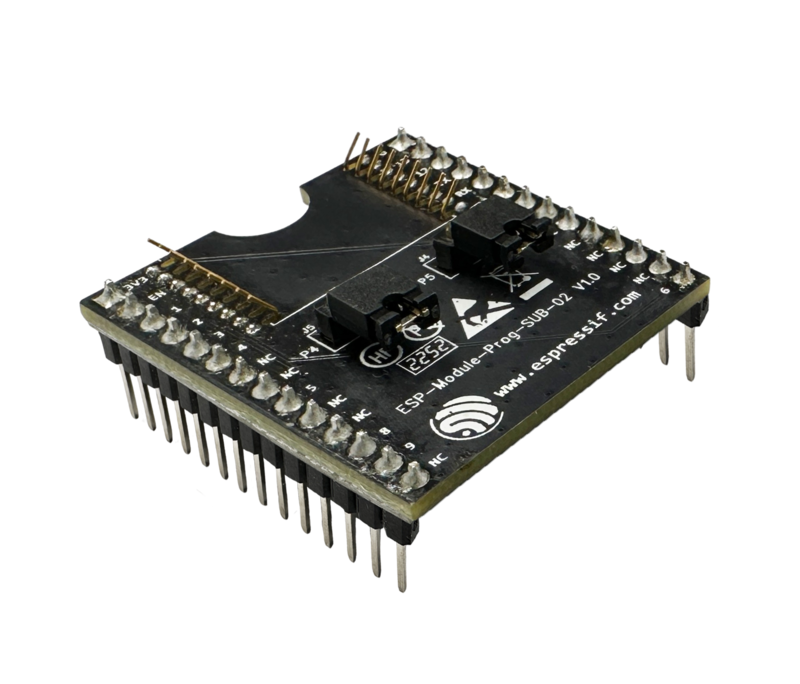

ESP8266-DevKitS |
 |
烧录底板 |

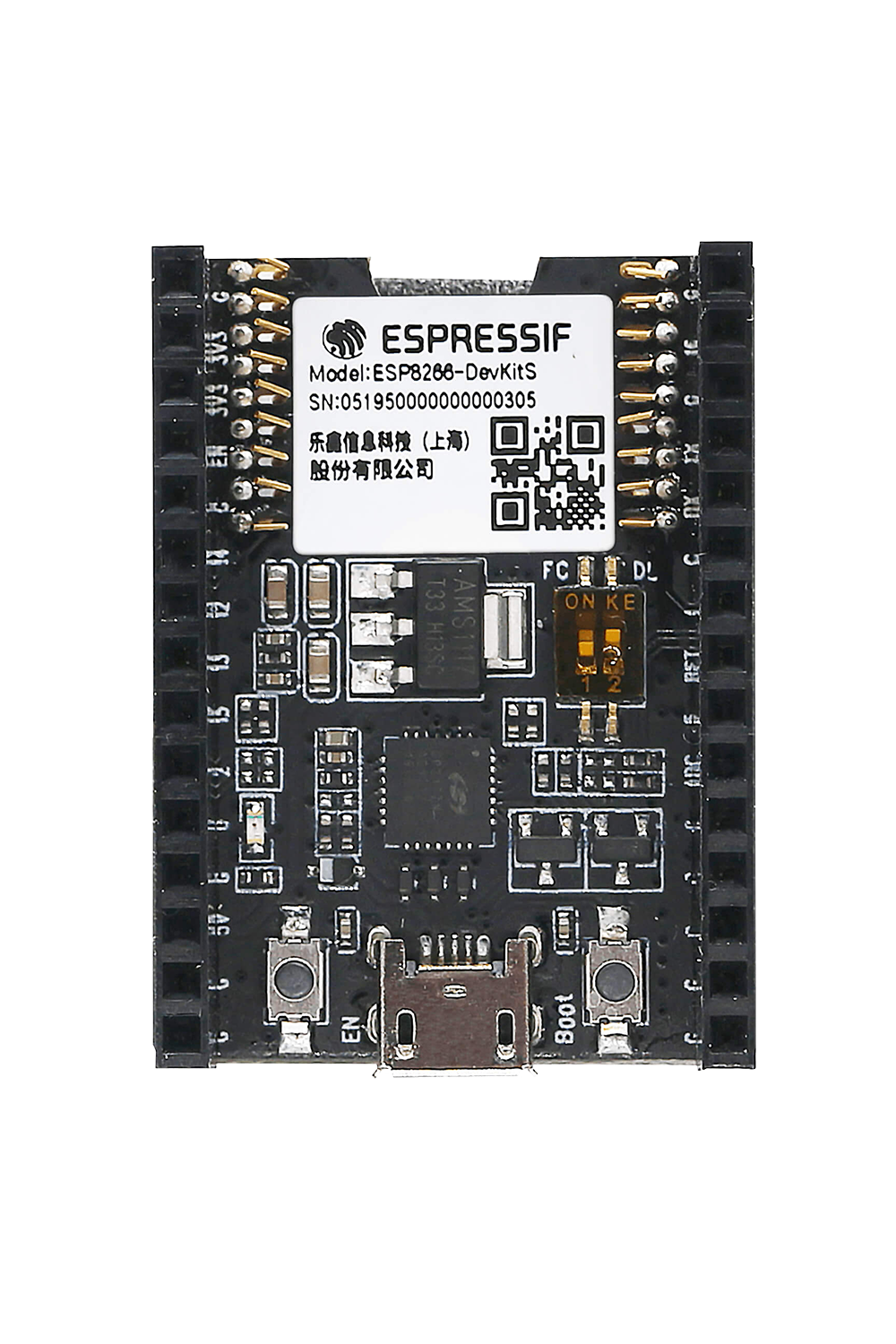

With a module mounted, ESP8266-DevKitS can be used as a mini development board like ESP8266-DevKitC. |
ESP-WROOM-02D ESP-WROOM-02U ESP-WROOM-02 |
 |
|

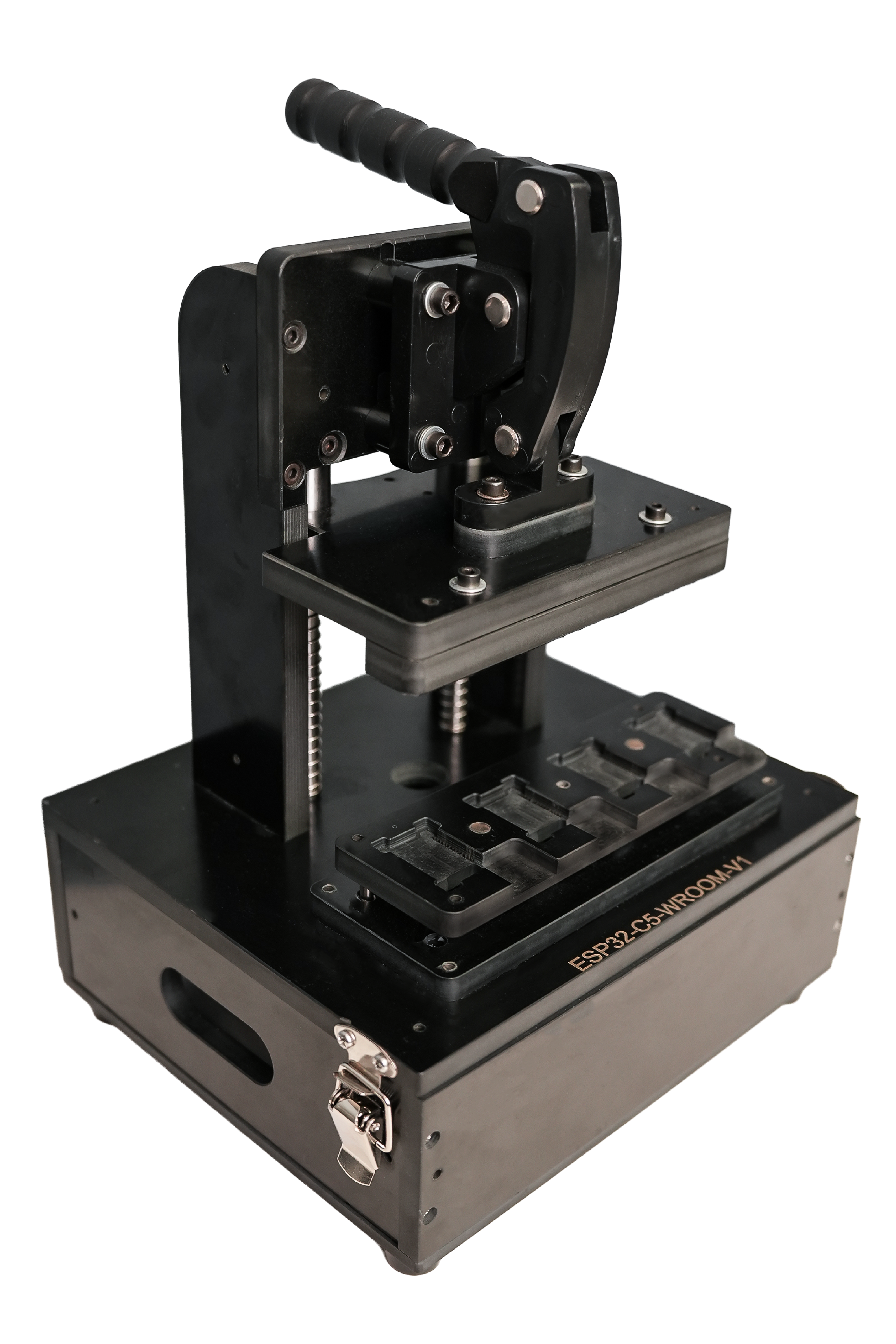

ESP32-WROOM-V1 |
 |
治具 |

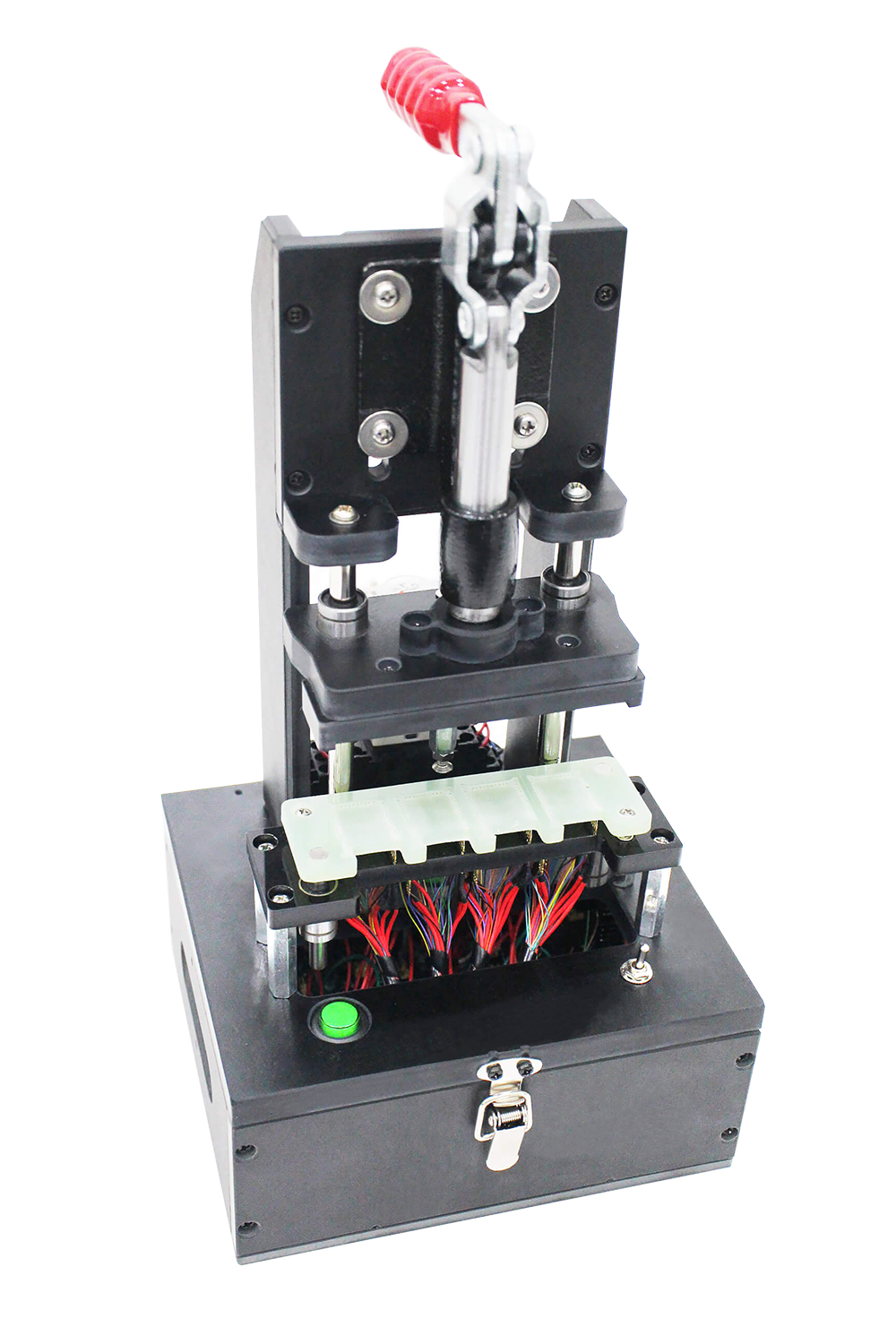

During the production testing, the module pins must be led out, so as to enable the module to communicate with the serial ports of the PC. Here, a test fixture can be used. Currently, four modules at most can be tested with one fixture at a time. |
ESP32-WROOM-32E ESP32-WROOM-32D ESP32-WROOM-32 ESP32-SOLO-1 |
 |
|
ESP32-WROOM-V3 |
 |
治具 |
During the production testing, the module pins must be led out, so as to enable the module to communicate with the serial ports of the PC. Here, a test fixture can be used. Currently, four modules can be tested with one fixture at a time. |
ESP32-WROOM-32UE ESP32-WROOM-32U |
 |
|
ESP32-WROVER-V1 |
 |
治具 |
During the production testing, the module pins must be led out, so as to enable the module to communicate with the serial ports of the PC. Here, a test fixture can be used. Currently, four modules at most can be tested with one fixture at a time. |
ESP32-WROVER-E ESP32-WROVER-B ESP32-WROVER |
 |
|
ESP32-WROVER-V2 |
 |
治具 |
During the production testing, the module pins must be led out, so as to enable the module to communicate with the serial ports of the PC. Here, a test fixture can be used. Currently, four modules can be tested with one fixture at a time. |
ESP32-WROVER-IE ESP32-WROVER-IB |
 |
|
ESP-WROOM-V1 |
 |
治具 |
During the production testing, the module pins must be led out, so as to enable the module to communicate with the serial ports of the PC. Here, a test fixture can be used. Currently, four modules at most can be tested with one fixture at a time. |
ESP-WROOM-02 ESP-WROOM-02D ESP-WROOM-02DC |
 |
|

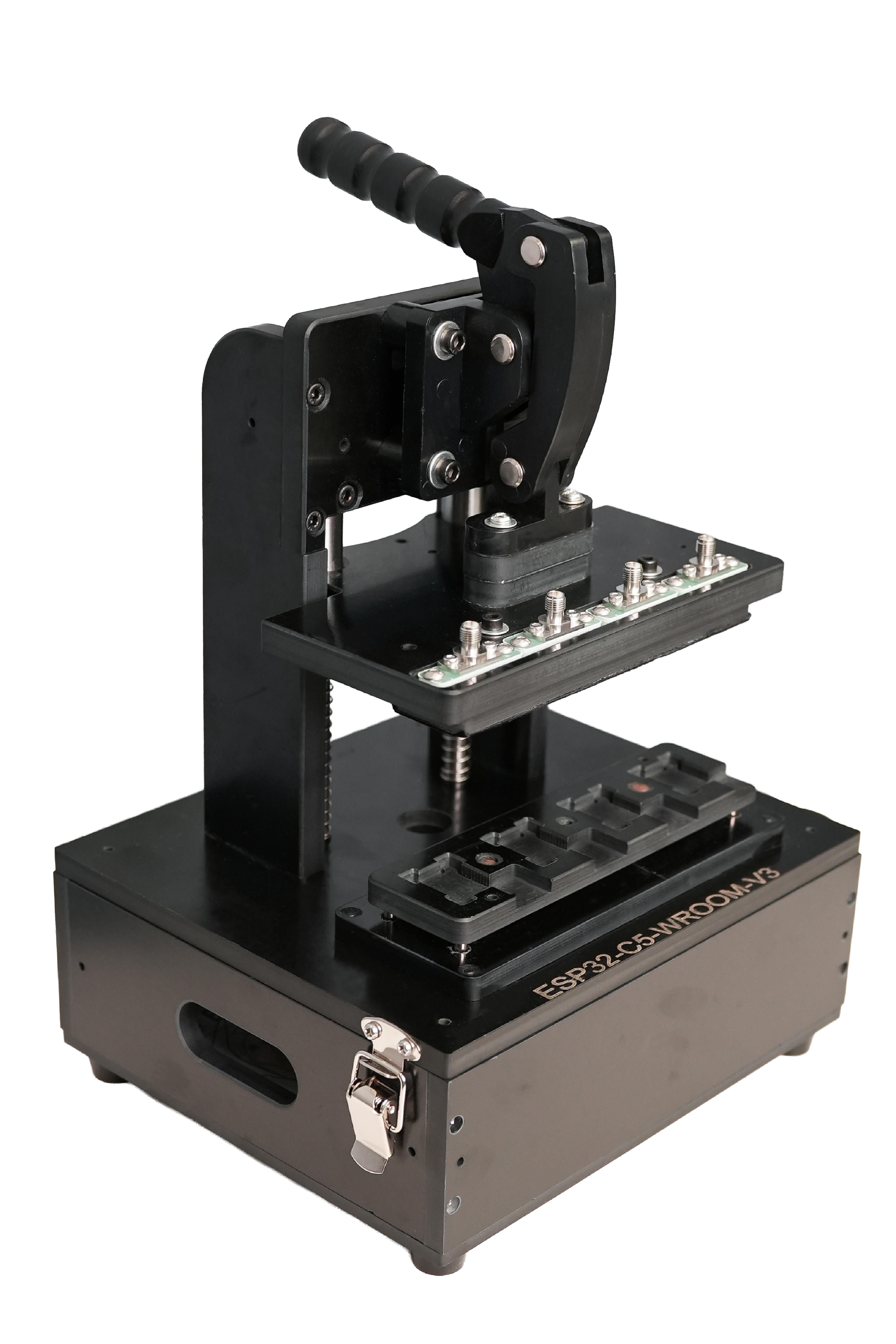

ESP-WROOM-V3 |
 |
治具 |
During the production testing, the module pins must be led out, so as to enable the module to communicate with the serial ports of the PC. Here, a test fixture can be used. Currently, four modules can be tested with one fixture at a time. |
ESP-WROOM-02U |
 |
|
ESP-BAT32 |
 |
信号板 |

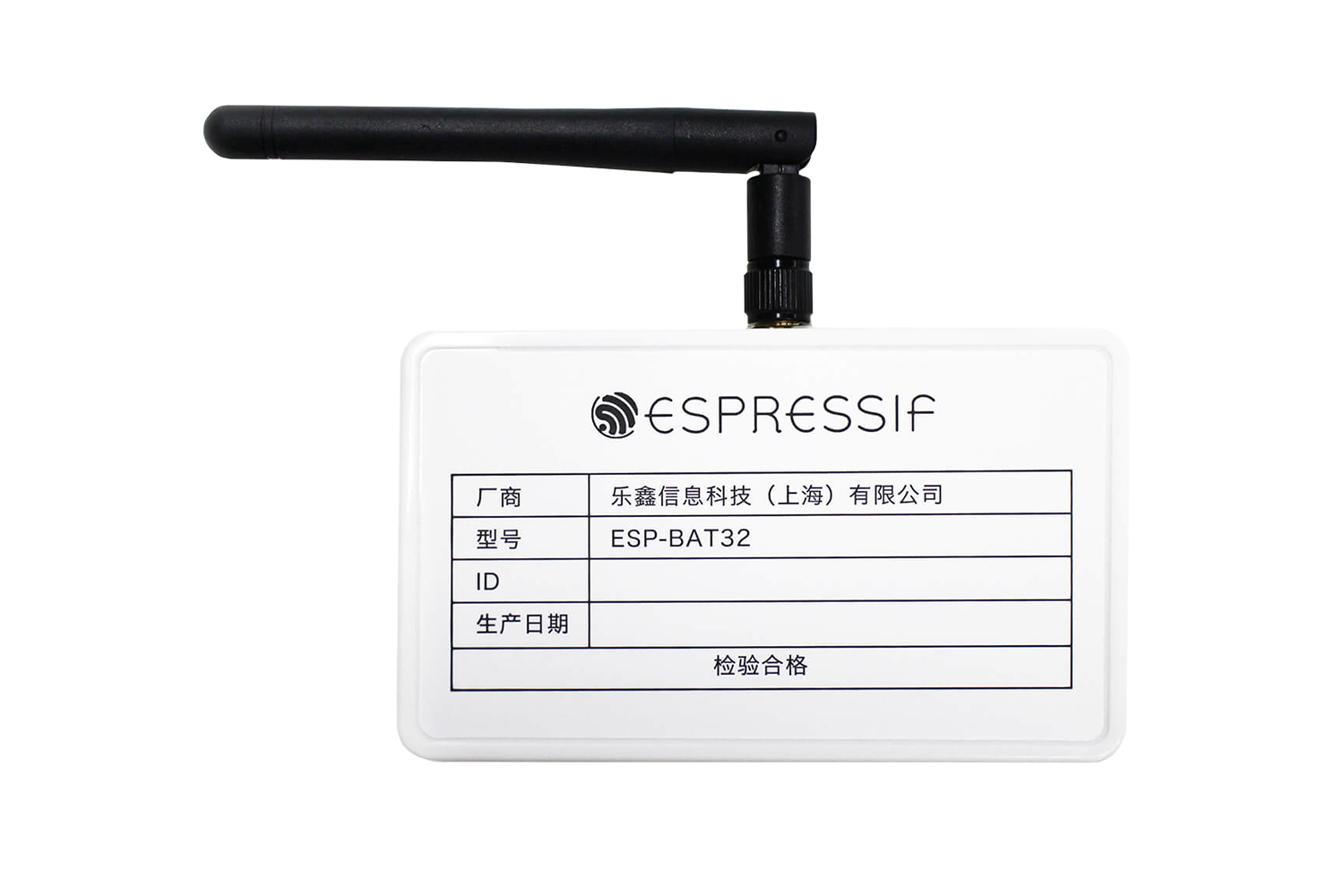

During the production testing, the signal board can be used as a standard device for communication with the DUT (Provided by Espressif). |
ESP32 Series |
 |
|
ESP-BAT8 |
 |
信号板 |
During the production testing, the signal board can be used as a standard device for communication with the DUT (Provided by Espressif). |
ESP8266 Series |
 |
|

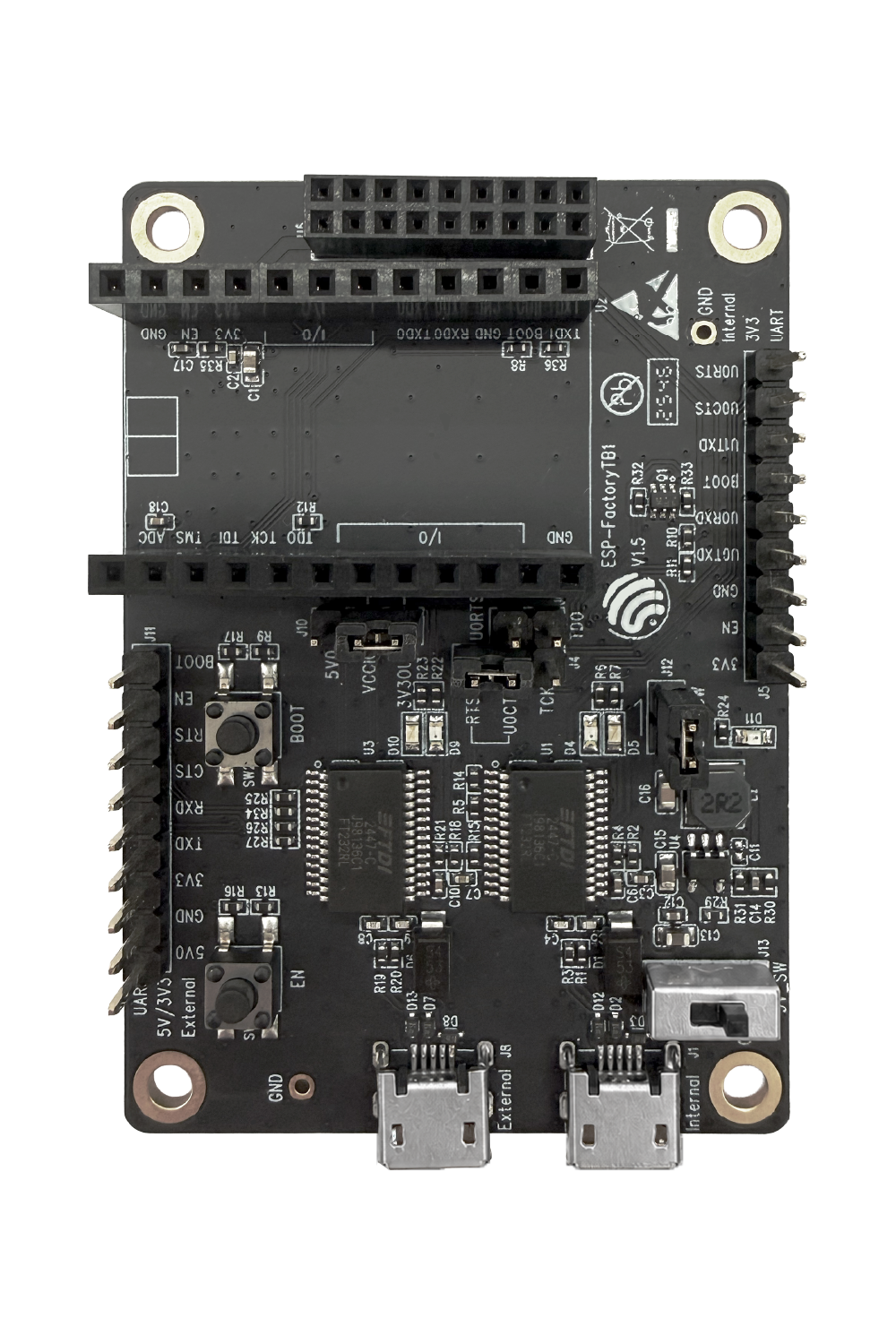

ESP-FactoryTB1 |
 |
产测底板 |

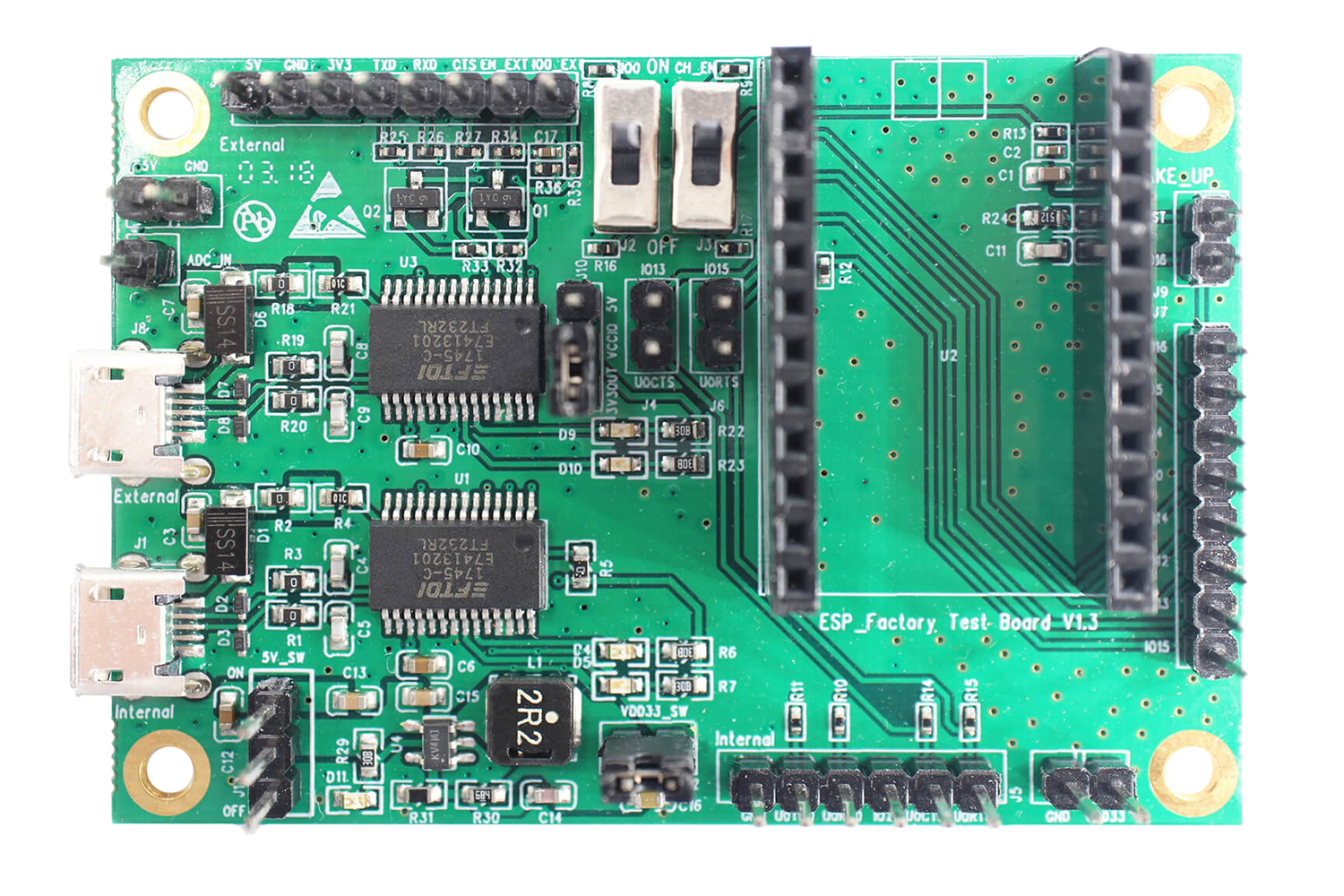

Designed for R&D and certification test, this stable production testing board works as a serial port board that provides two high-speed serial ports. |
All Espressif products |
 |
|
ESP-FactoryTB2 |
 |
产测底板 |

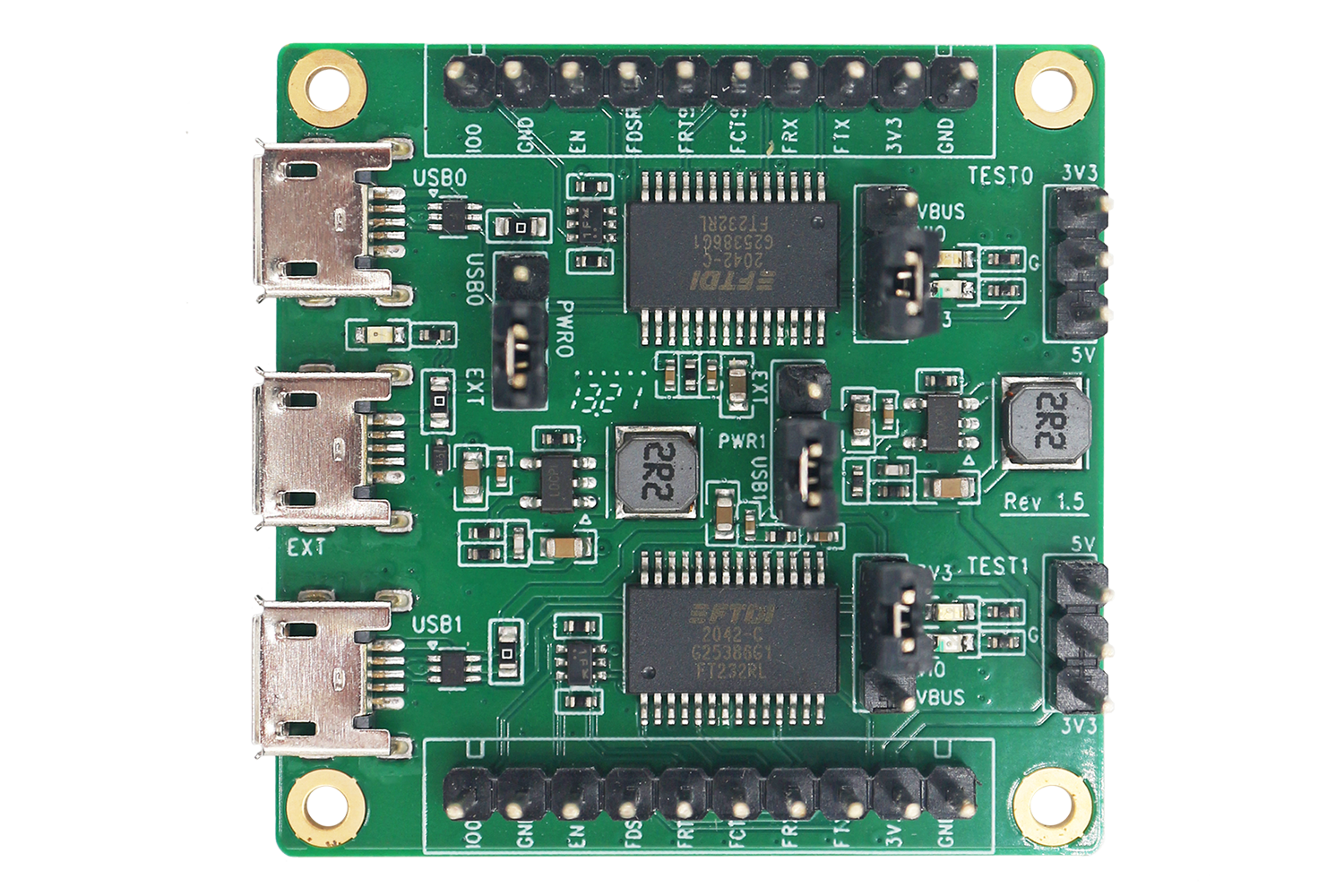

Designed for mass production and testing, this stable and compact production testing board works as a serial port board that provides two high-speed serial ports and a USB port that allows external power supply. |
All Espressif products |
 |
产测配件
乐鑫可提供一系列基础产测配件，为客户快速搭建基于乐鑫产品的生产测试方案原形提供参考。
| 配件型号 | image | 类型 | 描述 | 相关产品 | Large image |
|---|---|---|---|---|---|
|
ESP32-DevKitS(-R) |
 |
烧录底板 |
包括两款开发板 ESP32-DevKitS 和 ESP32-DevKitS-R。安装模组后，可作为类似 ESP32-DevKitC 的紧凑型开发板使⽤。 |
ESP32-WROOM-32E ESP32-WROOM-32UE ESP32-WROOM-32SE ESP32-WROVER-E ESP32-WROVER-IE ESP32-SOLO-1 |
 |
|
ESP8266-DevKitS |
 |
烧录底板 |
安装模组后，可作为类似 ESP8266-DevKitC 的紧凑型开发板使⽤。 |
ESP-WROOM-02D ESP-WROOM-02U ESP-WROOM-02 |
 |
|
ESP32-WROOM-V1 |
 |
治具 |
通过手柄按压，控制模组与夹具探针的接触，进而实现模组与 PC 的串口通讯，达到快速驱动模组工作的目的。目前最多支持“1 拖 4”。 |
ESP32-WROOM-32E ESP32-WROOM-32D ESP32-WROOM-32 ESP32-SOLO-1 |
 |
|
ESP32-WROOM-V3 |
 |
治具 |
通过手柄按压，控制模组与夹具探针的接触，进而实现模组与 PC 的串口通讯，达到快速驱动模组工作的目的。目前支持“1 拖 4”。 |
ESP32-WROOM-32UE ESP32-WROOM-32U |
 |
|
ESP32-WROVER-V1 |
 |
治具 |
通过手柄按压，控制模组与夹具探针的接触，进而实现模组与 PC 的串口通讯，达到快速驱动模组工作的目的。目前最多支持“1 拖 4”。 |
ESP32-WROVER-E ESP32-WROVER-B ESP32-WROVER |
 |
|
ESP32-WROVER-V2 |
 |
治具 |
通过手柄按压，控制模组与夹具探针的接触，进而实现模组与 PC 的串口通讯，达到快速驱动模组工作的目的。目前支持“1 拖 4”。 |
ESP32-WROVER-IE ESP32-WROVER-IB |
 |
|
ESP-WROOM-V1 |
 |
治具 |
通过手柄按压，控制模组与夹具探针的接触，进而实现模组与 PC 的串口通讯，达到快速驱动模组工作的目的。目前最多支持“1 拖 4”。 |
ESP-WROOM-02 ESP-WROOM-02D ESP-WROOM-02DC |
 |
|
ESP-WROOM-V3 |
 |
治具 |
通过手柄按压，控制模组与夹具探针的接触，进而实现模组与 PC 的串口通讯，达到快速驱动模组工作的目的。目前支持“1 拖 4”。 |
ESP-WROOM-02U |
 |
|
ESP-BAT32 |
 |
信号板 |
针对 ESP32 产品的射频测试板。在产测过程中，作为标准设备，与待测设备进行交互（由乐鑫制造并提供）。 |
ESP32 系列 |
 |
|
ESP-BAT8 |
 |
信号板 |
针对 ESP8266 产品的射频测试板。在产测过程中，作为标准设备，与待测设备进行交互（由乐鑫制造并提供）。 |
ESP8266 系列 |
 |
|
ESP-FactoryTB1 |
 |
产测底板 |
在研发或认证测试过程中，作为串口板使用，提供 2 路高速串口，具有稳定性高等优势。 |
乐鑫全系产品 |
 |
|
ESP-FactoryTB2 |
 |
产测底板 |
在产测过程中，作为串口板提供 2 路高速串口及提供外供电USB口，具有稳定性高，尺寸小等优势。 |
乐鑫全系产品 |
 |
